Hyundai Tucson: Fuse panel description - Do-it-yourself maintenance - Hyundai Tucson Owner's ManualHyundai Tucson: Fuse panel description

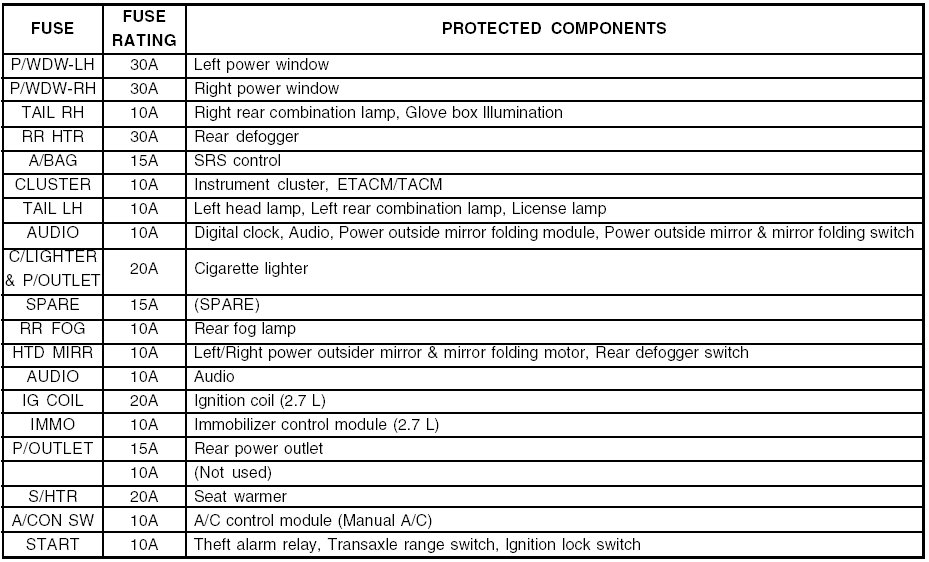

Engine Compartment

NOTE:

NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

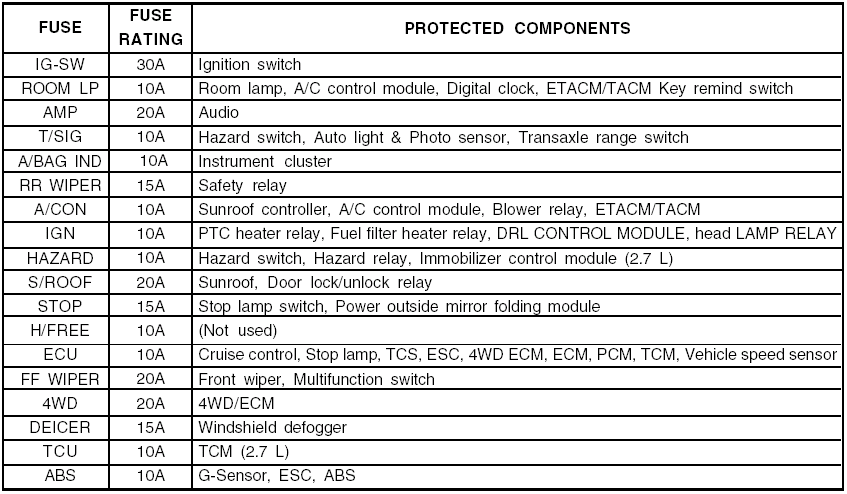

Inner Panel
