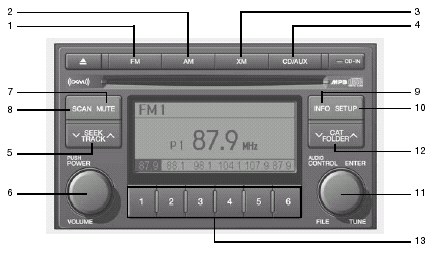

RADIO, SET UP, VOLUME CONTROL (PA 710S) (If installed) RADIO, SET UP, VOLUME CONTROL (PA 710S) (If installed) 1. FM Selection Button 2. AM Selection Button 3. XM Selection Button 4. CD/AUX Selection Button 5. Automatic Channel Selection Button 6. Power ON/OFF 7. MUTE Button 8. SCAN Button 9. Information Display Button 10. SET UP Button 11. TUNE/ENTER Button 12. CAT(FLDR) Button 13. Preset Button

1. FM Selection Button

Turns to FM mode and toggles FM1 and FM2 when the button is pressed each time.

2. AM Selection Button

Turns to AM mode, and toggles in the order of AM1pressed each time.AM2 pressed each time.···pressed each time.AM1···when the button is pressed each time.

3. XM Selection Button

Turns to XM mode, and toggles in the order of XM1is pressed each time.XM2is pressed each time.XM3is pressed each time.···is pressed each time.XM1··· when the button is pressed each time.

4. CD/AUX Selection Button

If there is a cd in the CDP DECK it turns to CD mode, and if a device is connected to AUX then it toggles. CDeach time.(It will not turn to AUX if the auxiliaryAUXeach time.(It will not turn to AUX if the auxiliaryCD··· when the button is pressed each time.(It will not turn to AUX if the auxiliary device is not connected)

5. Automatic Channel Selection Button

o When the [SEEK it]button is pressed, it reduces the band frequency by 200khz to automatically select channel. Stops at the previous frequency if no channel is found. o When the [SEEK increases the band frequency by 50khz to]button is pressed, it increases the band frequency by 50khz to automatically select channel. Stops at the previous frequency if no channel is found.

6. Power ON/OFF & Volume Control Button

Turns on/off the set when the IGNITION SWITCH is on ACC or ON. If the button is turned to the right, it increases the volume and left, decreases the volume.

7. MUTE Button

Press to temporarily cut off the Sound.

8. SCAN Button

If this button is pressed, the frequencies will become increased and receive the corresponding broadcasts. This function will play the frequencies for 5 seconds (XM MODE : 10 seconds) each and find other broadcasts as the frequency increases. Press the button again when desiring to continue listening to the currently playing broadcast.

9. Information Display Button

Information Display function operation (Information is displayed each time (the) Key is pressed) : Pressing the Category Name Artist NameSong TitleCategory-Channel Name KEY for 3 seconds will display the correspondingArtist NameKEY for 3 seconds will display the correspondingSong TitleKEY for 3 seconds will display the correspondingCategory- KEY for 3 seconds will display the corresponding text then become restored. Text Scroll operation After pressing (the) Key, if the text to be displayed is longer than the LCD text line, then rotating the Tune Knob will operate the Page up function displaying 8 characters for 3 seconds each - displays the maximum lines of text supported by XM.

10. SET UP Button

Press this button to turn to the XMoption, SCROLL and adjustment mode. If no action is taken for 5 seconds after pressing the button, it will return to the play mode.(After entering SET UP mode, move between items using the left, right and PUSH functions of the TUNE button.) The set up item changes from AUDIO adjustment, TEXT SCROLL, XM setup.

11. TUNE/ENTER Button

Turn this button clockwise by one notch

to increase frequency by 0.05Mhz from current frequency. Turn this button counterclockwise by one notch to decrease frequency by 0.05Mhz from current frequency. Press this button while holding SET UP button to activate / inactivate the item to. Select SET UP item using left and right function of the Tune button. Pressing the changes the BASS, MIDR- ANGE, TREBLE, FADER and BALANCE TUNE mode. The mode selected is shown on the display. After selecting each mode, rotate the Audio control knob clockwise or counterclockwise.

o BASS Control. To increase the BASS, rotate the knob clockwise, while to decrease the BASS, rotate the knob counterclockwise.

o MID-RANGE Control. To increase the MID-RANGE, rotate the knob clockwise, while to decrease the MID-RANGE, rotate the knob counterclockwise.

o TREBLE Control. To increase the TREBLE, rotate the knob clockwise, while to decrease the TREBLE, rotate the knob counterclockwise.

o FADER Control. Turn the control knob clockwise to emph- asize rear speaker sound (front speaker sound will be attenuated). When the control knob is turned counterclockwise, front speaker sound will be emphasized (rear speaker sound will be attenuated).

o BALANCE Control. Rotate the knob clockwise to emphasize right speaker sound (left speaker sound will be attenuated). When the control knob is turned counter clockwise, left speaker sound will be emphasized (right speaker sound will be attenuated).

12. CAT(FLDR) Button

Moves [CAT search operation.] Button when Category Up search operation. o Category is moved Up from the category currently being received and Category Name becomes displayed. o If the Enter Key is not pressed within 5 seconds, then the previous mode will be restored. o If the Key is pressed while in the last Category, then the first category will become displayed and operation will be repeated. o Corresponding category can be selected by pressing ENTER.

Moves [CAT search operation.] Button when Category Down search operation. o Category is moved Down from the category currently being received and Category Name becomes displayed. o If the Enter Key is not pressed within 5 seconds, then the previous mode will be restored. o If the [CAT the] Key is pressed while in the first Category, then the last category will become displayed and operation will be repeated. o Corresponding category can be selected by pressing ENTER.

13. Preset Button

Push [1]~[6] buttons less than 0.8 seconds to play the channel saved in each button. Push pre-set button for 0.8 seconds or longer to save current channel to the respective button with a beep.

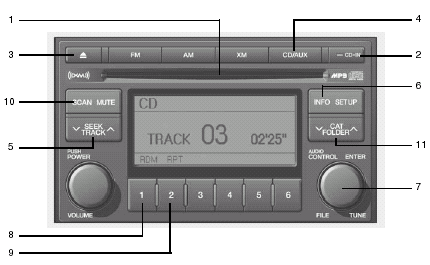

CD (PA 710S) (If installed) CD (PA 710S) (If installed) 1. CD Loading Slot 2. CD Indicator 3. CD Eject Button 4. CD/AUX Selection Button 5. Automatic Track Selection Button 6. INFO Button 7. TUNE/ENTER Button 8. RANDOM Play Button 9. REPEAT Button 10. SCAN Play Button 11. FOLDER Button

1. CD Loading Slot

Please face printed side upward and gently push in. When the ignition switch is on ACC or ON and power is off, power is automatically turned on if the CD is loaded. This CDP supports both 8cm and 12 cm CDs. But if VCD, Data CD, MP3 CD are loaded, "Er-6" message will appear and CD will be ejected.

2. CD Indicator

When car ignition switch is ACC or ON and if the CD is loaded, this indicator is lighted. If the CD is ejected the light is turned off.

3. CD Eject Button

Push playback. This button is enabled when ignition button to eject the CD during CD playback. This button is enabled when ignition switch is off.

4. CD/AUX Selection Butto

If there is a cd in the CDP DECK it turns to CD mode, and if a device is connected to AUX then it toggles. CDeach time.(It will not turn to AUX if the auxiliaryAUXeach time.(It will not turn to AUX if the auxiliaryCD··· when the button is pressed each time.(It will not turn to AUX if the auxiliary device is not connected)

5. Automatic Track Selection Button

o Push [SEEK 0.8] button for less than 0.8 seconds to play from the beginning of current song. o Push [SEEK seconds and press again within 1 seconds] button for less than 0.8 seconds and press again within 1 seconds to play the previous song. o Push [SEEK to] button for 0.8 or longer to initiate reverse direction high speed sound search of current song. o Push [SEEK seconds to play the next song.] button for less than 0.8 seconds to play the next song. o Push [SEEK to] button for 0.8 or longer to initiate high speed sound search of current song.

6. INFO Button

Displays the information of the current CD TRACK in the order of DISC TITLE ARTISTTRACK TITLE TRACK ARTISTDISC ARTISTTOTAL TRACK Play Screen DISCTRACK TITLETOTAL TRACK Play Screen DISC TRACK ARTIST TITLE···.(not displayed if the information is notTOTAL TRACKTITLE···.(not displayed if the information is not Play Screen TITLE···.(not displayed if the information is notDISC TITLEavailable on the DISC.)···.(not displayed if the information is not available on the DISC.)

7. TUNE/ENTER Button

Turn this button clockwise to display songs after current song. Also, turn this button counterclockwise to display songs before current song. To listen to the displayed song, press the button to skip to the song and play.

Pressing the changes the BASS, MIDR- ANGE, TREBLE, FADER and BALANCE TUNE mode. The mode selected is shown on the display. After selecting each mode, rotate the Audio control knob clockwise or counterclockwise.

o BASS Control. To increase the BASS, rotate the knob clockwise, while to decrease the BASS, rotate the knob counterclockwise.

o MID-RANGE Control. To increase the MID-RANGE, rotate the knob clockwise, while to decrease the MID-RANGE, rotate the knob counterclockwise.

o TREBLE Control. To increase the TREBLE, rotate the knob clockwise, while to decrease the TREBLE, rotate the knob counterclockwise.

o FADER Control. Turn the control knob clockwise to emph- asize rear speaker sound (front speaker sound will be attenuated). When the control knob is turned counterclockwise, front speaker sound will be emphasized (rear speaker sound will be attenuated).

o BALANCE Control. Rotate the knob clockwise to emphasize right speaker sound (left speaker sound will be attenuated). When the control knob is turned counter clockwise, left speaker sound will be emphasized (right speaker sound will be attenuated).

8. RANDOM Play Button

Turns on/off the randomization of the play list of files in the currently played DISC. To cancel the mode, press the key once again.

9. REPEAT Button

Repeats current song when the button is pressed for less than 0.8 seconds. Repeats the entire DISC when the button is pressed for 0.8 seconds or longer.

10. SCAN Play Button

Plays first 10 seconds of each song in the DISC. To cancel the mode, press the key once again.

11. FOLDER Button

Folder up/down operation. o Folder is moved up or down from currently playing and folder name becomes displayed. o Press enter key to play the selected folder. o If the enter key is not pressed with in 5 seconds, then the previous folder name will be displayed again.

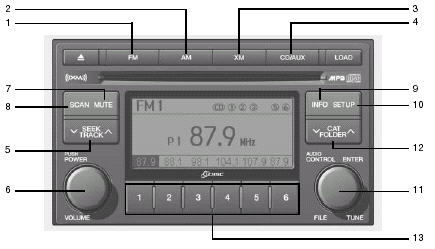

RADIO, SET UP, VOLUME CONTROL (PA 760S) (If installed) RADIO, SET UP, VOLUME CONTROL (PA 760S) (If installed) 1. FM Selection Button 2. AM Selection Button 3. XM Selection Button 4. CD/AUX Selection Button 5. Automatic Channel Selection Button 6. Power ON/OFF 7. MUTE Button 8. SCAN Button 9. Information Display Button 10. SET UP Button 11. TUNE/ENTER Button 12. CAT(FLDR) Button 13. Preset Button

1. FM Selection Button

Turns to FM mode and toggles FM1 and FM2 when the button is pressed each time.

2. AM Selection Button

Turns to AM mode, and toggles in the order of AM1pressed each time.AM2pressed each time.···pressed each time.AM1···when the button is pressed each time.

3. XM Selection Button

Turns to XM mode, and toggles in the order of XM1is pressed each time.XM2is pressed each time.XM3is pressed each time.···is pressed each time.XM1··· when the button is pressed each time.

4. CD/AUX Selection Button

If there is a cd in the CDP DECK it turns to CD mode, and if a device is connected to AUX then it toggles. CDeach time.(It will not turn to AUX if the auxiliaryAUXeach time.(It will not turn to AUX if the auxiliaryCD··· when the button is pressed each time.(It will not turn to AUX if the auxiliary device is not connected)

5. Automatic Channel Selection Button

o When the [SEEK it]button is pressed, it reduces the band frequency by 200khz to automatically select channel. Stops at the previous frequency if no channel is found. o When the [SEEK increases the band frequency by 50khz to]button is pressed, it increases the band frequency by 50khz to automatically select channel. Stops at the previous frequency if no channel is found.

6. Power ON/OFF & Volume Control Button

Turns on/off the set when the IGNITION SWITCH is on ACC or ON. If the button is turned to the right, it increases the volume and left, decreases the volume.

7. MUTE Button

Press to temporarily cut off the Sound.

8. SCAN Button

If this button is pressed, the frequencies will become increased and receive the corresponding broadcasts. This function will play the frequencies for 5 seconds (XM MODE : 10 seconds) each and find other broadcasts as the frequency increases. Press the button again when desiring to continue listening to the currently playing broadcast.

9. Information Display Button

Information Display function operation (Information is displayed each time (the) Key is pressed) : Pressing the Category Name Artist NameSong TitleCategory-Channel Name KEY for 3 seconds will display the correspondingArtist NameKEY for 3 seconds will display the correspondingSong TitleKEY for 3 seconds will display the correspondingCategory- KEY for 3 seconds will display the corresponding text then become restored. Text Scroll operation After pressing (the) Key, if the text to be displayed is longer than the LCD text line, then rotating the Tune Knob will operate the Page up function displaying 8 characters for 3 seconds each - displays the maximum lines of text supported by XM.

10. SET UP Button

Press this button to turn to the XMoption, SCROLL and adjustment mode. If no action is taken for 5 seconds after pressing the button, it will return to the play mode.(After entering SET UP mode, move between items using the left, right and PUSH functions of the TUNE button.) The set up item changes from AUDIO adjustment, TEXT SCROLL, XM setup.

11. TUNE/ENTER Button

Turn this button clockwise by one notch to increase frequency by 0.05Mhz from current frequency. Turn this button counterclockwise by one notch to decrease frequency by 0.05Mhz from current frequency. Press this button while holding SET UP button to activate / inactivate the item to. Select SET UP item using left and right function of the Tune button. Pressing the changes the BASS, MIDR- ANGE, TREBLE, FADER and BALANCE TUNE mode. The mode selected is shown on the display. After selecting each mode, rotate the Audio control knob clockwise or counterclockwise.

o BASS Control. To increase the BASS, rotate the knob clockwise, while to decrease the BASS, rotate the knob counterclockwise.

o MID-RANGE Control. To increase the MID-RANGE, rotate the knob clockwise, while to decrease the MID-RANGE, rotate the knob counterclockwise.

o TREBLE Control. To increase the TREBLE, rotate the knob clockwise, while to decrease the TREBLE, rotate the knob counterclockwise.

o FADER Control. Turn the control knob clockwise to emph- asize rear speaker sound (front speaker sound will be attenuated). When the control knob is turned counterclockwise, front speaker sound will be emphasized (rear speaker sound will be attenuated).

o BALANCE Control. Rotate the knob clockwise to emphasize right speaker sound (left speaker sound will be attenuated). When the control knob is turned counter clockwise, left speaker sound will be emphasized (right speaker sound will be attenuated).

12. CAT(FLDR) Button

Moves [CAT search operation.] Button when Category Up search operation. o Category is moved Up from the category currently being received and Category Name becomes displayed. o If the Enter Key is not pressed within 5 seconds, then the previous mode will be restored. o If the Key is pressed while in the last Category, then the first category will become displayed and operation will be repeated. o Corresponding category can be selected by pressing ENTER.

Moves [CAT search operation.] Button when Category Down search operation. o Category is moved Down from the category currently being received and Category Name becomes displayed. o If the Enter Key is not pressed within 5 seconds, then the previous mode will be restored. o If the [CAT the] Key is pressed while in the first Category, then the last category will become displayed and operation will be repeated. o Corresponding category can be selected by pressing ENTER.

13. Preset Button

Push [1]~[6] buttons less than 0.8 seconds to play the channel saved in each button. Push pre-set button for 0.8 seconds or longer to save current channel to the respective button with a beep.

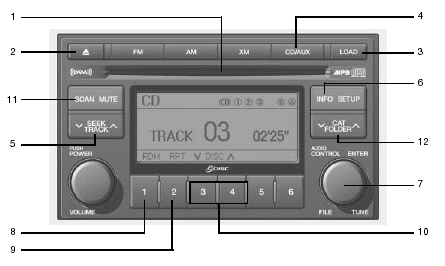

CDC (PA 760S) (If Installed) CDC (PA 760S) (If Installed) 1. CD Loading Slot 2. CD Eject Button 3. LOAD Button 4. CD/AUX Selection Button 5. Automatic Track Selection Button 6. INFO Button 7. TUNE/ENTER Button 8. RANDOM Play Button 9. REPEAT Button 10. DISC Selection Button 11. SCAN Play Button 12. FOLDER Button

1. CD Loading Slot

Please face printed side upward and gently push in. When the ignition switch is on ACC or ON and power is off, power is automatically turned on if the CD is loaded. This CDP supports both 8cm and 12 cm CDs. But if VCD, Data CD, MP3 CD are loaded, "Er-6" message will appear and CD will be ejected.

2. CD Eject Button

Push playback. This button is enabled when ignition button to eject the CD during CD playback. This button is enabled when ignition switch is off.

3. CD LOAD Button

Push [LOAD] button to load CDs to available CDC deck (from 1~6). Push [LOAD] button for more than 2 seconds to load into all available decks. The last CD will play. 10 seconds idle status will disable loading process.

4. CD/AUX Selection Button

If the auxiliary device is connected, it turns to AUX MODE to play the sound from the auxiliary player. If no auxiliary device is connected, it displays ""NO MEDIA"" for 5 seconds and returns to the previous mode."

5. Automatic Track Selection Button

o Push [SEEK 0.8] button for less than 0.8 seconds to play from the beginning of current song. o Push [SEEK seconds and press again within 1 seconds] button for less than 0.8 seconds and press again within 1 seconds to play the previous song. o Push [SEEK to] button for 0.8 or longer to initiate reverse direction high speed sound search of current song. o Push [SEEK seconds to play the next song.] button for less than 0.8 seconds to play the next song. o Push [SEEK to] button for 0.8 or longer to initiate high speed sound search of current song.

6. INFO Button

Displays the information of the current CD TRACK in the order of DISC TITLE ARTISTTRACK TITLE TRACKDISC ARTISTARTISTTOTAL TRACKPlay Screen DISCTRACK TITLEARTISTTOTAL TRACKPlay Screen DISC TRACK ARTISTTITLE···.(not displayed if the information is notTOTAL TRACKTITLE···.(not displayed if the information is notPlay Screen TITLE···.(not displayed if the information is notDISC TITLEavailable on the DISC.)···.(not displayed if the information is not available on the DISC.)

7. TUNE/ENTER Button

Turn this button clockwise to display songs after current song. Also, turn this button counterclockwise to display songs before current song.

To listen to the displayed song, press the button to skip to the song and play. Pressing the changes the BASS, MIDR- ANGE, TREBLE, FADER and BALANCE TUNE mode. The mode selected is shown on the display. After selecting each mode, rotate the Audio control knob clockwise or counterclockwise.

o BASS Control. To increase the BASS, rotate the knob clockwise, while to decrease the BASS, rotate the knob counterclockwise.

o MID-RANGE Control. To increase the MID-RANGE, rotate the knob clockwise, while to decrease the MID-RANGE, rotate the knob counterclockwise.

o TREBLE Control. To increase the TREBLE, rotate the knob clockwise, while to decrease the TREBLE, rotate the knob counterclockwise.

o FADER Control. Turn the control knob clockwise to emph- asize rear speaker sound (front speaker sound will be attenuated). When the control knob is turned counterclockwise, front speaker sound will be emphasized (rear speaker sound will be attenuated).

o BALANCE Control. Rotate the knob clockwise to emphasize right speaker sound (left speaker sound will be attenuated). When the control knob is turned counter clockwise, left speaker sound will be emphasized (right speaker sound will be attenuated).

8. RANDOM Play Button

Turns on/off the randomization of the play list of files in the currently played DISC. To cancel the mode, press the key once again.

9. REPEAT Button

Repeats current song when the button is pressed for less than 0.8 seconds. Repeats the entire DISC when the button is pressed for 0.8 seconds or longer.

10. DISC Selection Button

o [DISC Changes disc to the previous disc.] Change Button Changes disc to the previous disc. o [DISC Changes disc to the next disc.] Change Button Changes disc to the next disc.

11. SCAN Play Button

Plays first 10 seconds of each song in the DISC. To cancel the mode, press the key once again.

12. FOLDER Button

Folder up/down operation. o Folder is moved up or down from currently playing and folder name becomes displayed. o Press enter key to play the selected folder. o If the enter key is not pressed with in 5 seconds, then the previous folder name will be displayed again.

AUDIO FAULT CODE

If you see any error indication in the display while using the system in the CD or Tape mode, find the cause in the chart below. If you cannot clear the error indication, take the car to your Hyundai dealer.

INDICATION CAUSE SOLUTION
Er2 CD DECK MECHANICAL ERROR. (EJECT ERROR, LOADING ERROR) After resetting the audio system, push the eject button. If disc is not ejected, consult your Hyundai dealer.
Er3 FOCUS ERROR. DATA READ ERROR Make sure the disc is not scratched or damaged. Press the eject button and pull out the disc. Then insert a normal CD disc.
Er6 DISC ERROR Check if the disc is inserted correctly in the CD player. Make sure the disc is not scratched or damaged.
Er8 TAPE DECK ERROR. TAPE EJECT ERROR After resetting the audio system, push the eject button. If tape does not eject, consult your Hyundai dealer.
HHH TEMPERATURE IS TOO HIGH Fault code will reset automatically when the temperature returns to normal.
no CD NO DISC IN MAGAZINE. NO CD MAGAZINE IN THE AUTO CHANGER Insert disc in magazine or insert CD magazine in the auto changer.
    Stereo sound system
    How Car Audio Works AM and FM radio signals are broadcast from transmitter towers located around your city. They are intercepted by the radio antenna on your car. This signal is then received ...

    Care of discs
    Proper Handling Handle your disc as shown. Do not drop the disc. Hold the disc so you will not leave fingerprints on the surface. If the surface is scratched, it may cause the pickup to skip ...
