Jeep Liberty: Manual Front Seat Adjustments - Seats - Understanding The Features Of Your Vehicle - Jeep Liberty Owner's ManualJeep Liberty: Manual Front Seat Adjustments

For models equipped with manual seats, the driver and passenger seats can be adjusted forward or rearward by using a bar by the front of the seat cushion, near the floor

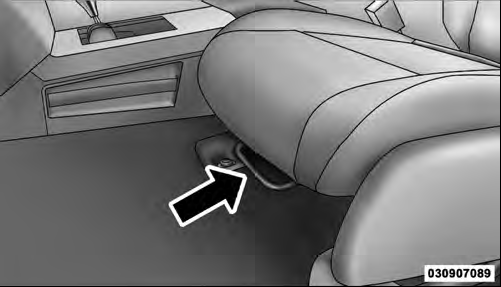

Manual Seat Adjustment
Manual Seat Adjustment

While sitting in the seat, lift up on the bar and move the seat forward or rearward. Release the bar once you have reached the desired position. Then, using body pressure, move forward and rearward on the seat to be sure that the seat adjusters have latched.

WARNING!
• Adjusting a seat while driving may be dangerous.

Moving a seat while driving could result in loss of control which could cause a collision and serious injury or death.

• Seats should be adjusted before fastening the seat belts and while the vehicle is parked. Serious injury or death could result from a poorly adjusted seat belt.

    Heated Seats — If Equipped
    On some models, the front driver and passenger seats may be equipped with heaters in both the seat cushions and seatbacks. There are two heated seat switches that allow the driver and passenger ...

    Front Seat — Manual Recline
    To recline the seatback, lean forward slightly and lift the lever. Then lean back to the position desired and release the lever. To return the seatback to its normal upright position, lean forwa ...
