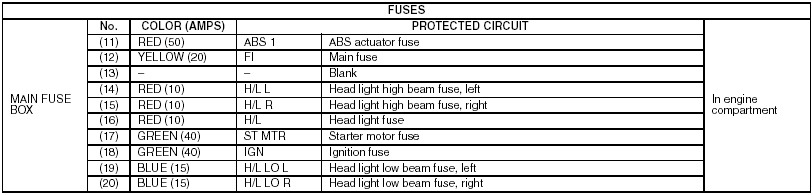

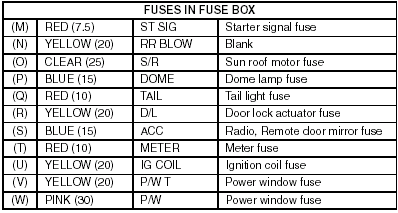

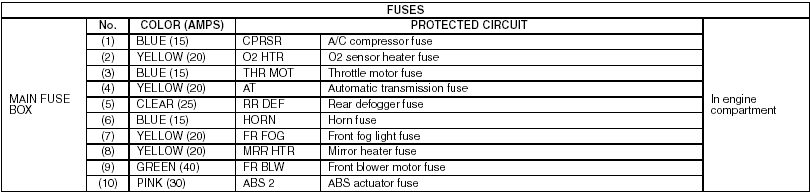

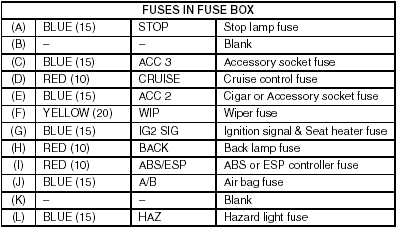

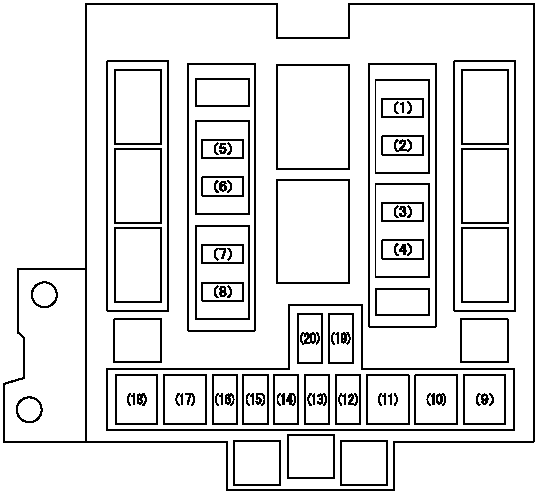

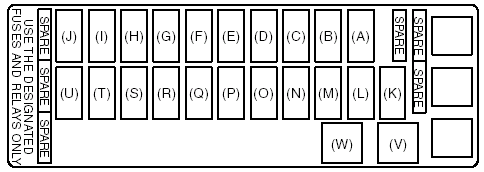

Suzuki Grand Vitara: Fuses and Protected Circuits
Reporting Safety Defects
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in ...Specifications
NOTE: Specifications are subject to change without notice. 4WD: 4-wheel drive. 2WD: 2-wheel drive. M/T: Manual transmission. A/T: Automatic transmission. ...See also:
