Subaru Forester: Combination meter - Illustrated index - Subaru Forester Owner's ManualSubaru Forester: Combination meter

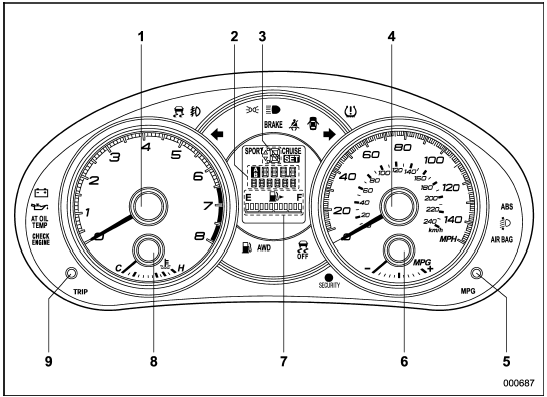

Type A

Type A

1) Tachometer
2) Trip meter and odometer
3) Select lever and gear position indicator
4) Speedometer
5) Information display switching knob
6) ECO gauge
7) Fuel gauge
8) Temperature gauge
9) Trip meter A/B selection and trip meter reset knob

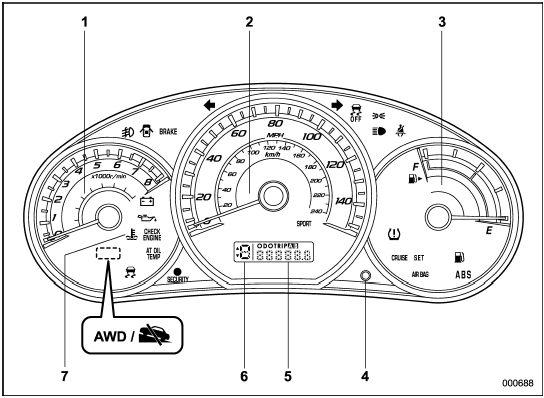

Type B (U.S.-spec. models)

Type B (U.S.-spec. models)

1) Tachometer
2) Speedometer
3) Fuel gauge
4) Trip meter A/B selection and trip meter reset knob
5) Odometer/Trip meter
6) Select lever and gear position indicator (AT models)
7) Coolant temperature low indicator light/ Coolant temperature high warning light

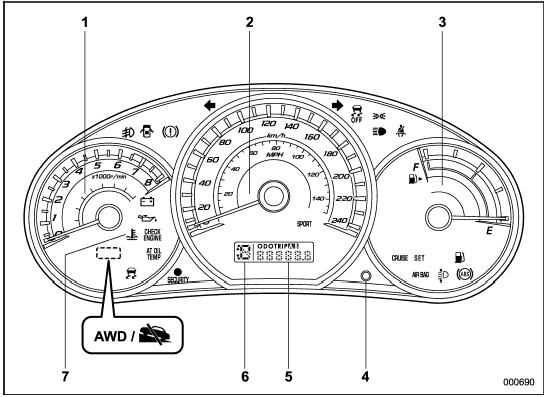

Type B (except U.S.-spec. models)

Type B (except U.S.-spec. models)

1) Tachometer
2) Speedometer
3) Fuel gauge
4) Trip meter A/B selection and trip meter reset knob
5) Odometer/Trip meter
6) Select lever and gear position indicator (AT models)
7) Coolant temperature low indicator light/Coolant temperature high warning light
