Jeep Liberty: Windshield Wiper Operation
Rotate the end of the lever upward to the second detent past the intermittent settings for low-speed wiper operation.
Rotate the end of the lever upward to the third detent past the intermittent settings for high-speed wiper operation.

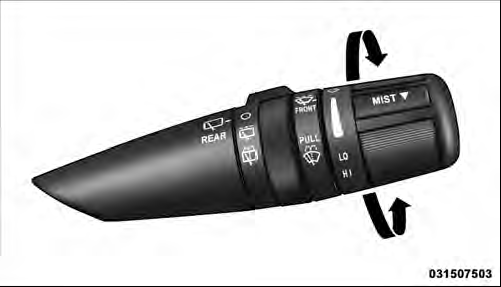

Front Wiper Control
NOTE: The wipers will automatically return to the “park” position if you turn OFF the ignition switch while they are operating. The wipers will resume operation when you turn the ignition switch back to the ON position.
CAUTION!
• Turn the windshield wipers off when driving
through an automatic car wash. Damage to the
windshield wipers may result if the wiper control
is left in any position other than off.
• In cold weather, always turn off the wiper switch and allow the wipers to return to the “Park” position before turning off the engine. If the wiper switch is left on and the wipers freeze to the windshield, damage to the wiper motor may occur when the vehicle is restarted.
• Always remove any buildup of snow that prevents the windshield wiper blades from returning to the off position. If the windshield wiper control is turned off and the blades cannot return to the off position, damage to the wiper motor may occur.
Windshield Wipers And Washers
The windshield wiper/washer control lever is located on
the right side of the steering column. The front wipers are
operated by rotating a switch, located at the end of the
lever. For informatio ...
Intermittent Wiper System
Use the intermittent wiper system when weather conditions
make a single wiping cycle with a variable pause
between cycles desirable. Rotate the end of the windshield
wiper/washer control lever t ...
