Suzuki Grand Vitara: Troubleshooting - Instrument Panel - Suzuki Grand Vitara Owner's ManualSuzuki Grand Vitara: Troubleshooting

Applicable to every device

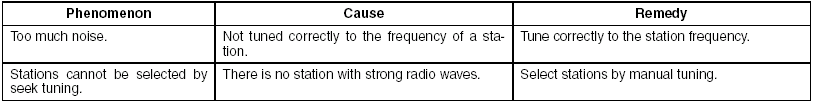

Radio

Radio

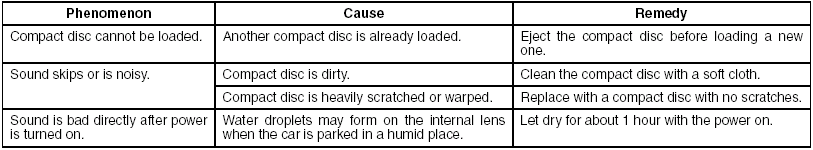

CD

CD

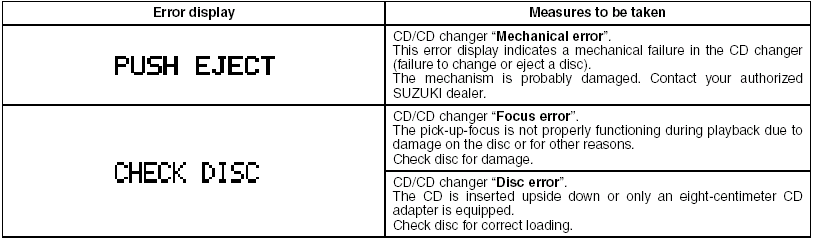

Error display

Error display

This unit has a number of self-diagnostic functions to protect the system. If a problem should occur, the display shows the type of error. Refer to the table below and take proper measures to correct the problem. If the problem is corrected, the unit will operate normally.

If an error display not listed above appears, turn off the unit and contact your

If an error display not listed above appears, turn off the unit and contact your SUZUKI dealer.

    Anti-Theft Feature
    Anti-Theft Feature (1) Power on/off knob (2) Track up button/Fast forward button (3) Preset buttons (1 to 6) The anti-theft feature is intended to discourage theft or the audio system by preven ...
