To operate the trip computer, use the A switch.

When the ignition switch is in the ON position, modes of the trip computer can be selected by pushing the switch A briefly.

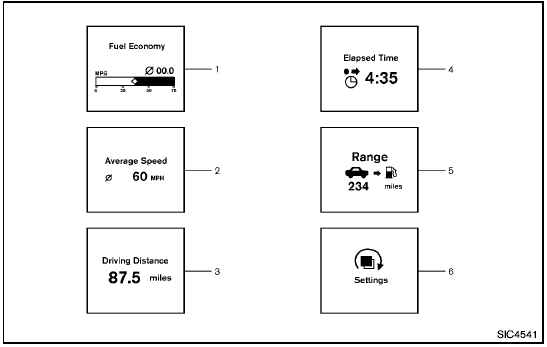

Each time the switch A is pushed, the display will change as follows:
Fuel Economy Average speed Driving distance Elapsed time Range (distance to empty) (dte) Settings - When the switch A is pushed and held for less than 3 seconds, the selected item can be reset except for “Range”, “Current fuel consumption” and “Settings”.

- When the switch A is pushed and held for more than 3 seconds, all the items on the display can be reset except for “Current fuel consumption”, “Settings”, “Range” and “TRIP A”.

Example*

*: The display unit can be converted or varies depending on the vehicle.

1. Fuel Economy (MPG, l/100 km)

The Fuel Economy mode shows the current and average fuel consumption.

Current fuel consumption:

The current fuel consumption mode shows the current fuel consumption by a moving bar graph.

Average fuel consumption:

The average fuel consumption mode shows the average fuel consumption by the value above the bar graph, the position of the diamond icon and the value of ˘ since the last reset. Resetting the average fuel consumption is done by pushing and holding the switch A for less than 3 seconds.

The display is updated every 30 seconds. At about the first 0.3 mile (500 m) after a reset, the display shows “----”.

2. Average Speed (MPH or km/h)

The Average Speed mode shows the average vehicle speed since the last reset. Resetting is done by pushing and holding the switch B for less than 3 seconds.

The display is updated every 30 seconds. For the first 30 seconds after a reset, the display shows “----”.

3. Driving Distance (miles or km)

The Driving Distance mode shows the distance driven since the last reset. The driving distance can be reset by pushing and holding the switch A for less than 3 seconds.

4. Elapsed Time

The Elapsed Time mode shows the time since the last reset. The displayed time can be reset by pushing and holding the switch A for less than 3 seconds.

5. Range (distance to empty) (dte — miles or km)

The distance to empty (dte) mode provides you with an estimation of the distance that can be driven before refueling. The dte is constantly being calculated based on the amount of fuel in the fuel tank and the actual fuel consumption.

The display is updated every 30 seconds.

The dte mode includes a low range warning feature. If the fuel level is low, the warning is displayed on the screen.

When the fuel level drops even lower, the dte display will change to “----”.

- If the amount of fuel added is small, the display just before the ignition switch is turned to the “OFF” position may continue to be displayed.

- When driving uphill or rounding curves, the fuel in the tank shifts, which may momentarily change the display.

6. Settings

Setting cannot be made while driving.

The switch A is used to select and set the item.

Turn the A switch to select or adjust and push to set.

Clock:

Clock adjustment can be set on this menu.

- Set Clock
Adjust the time (hour and minute) of the clock.

- [On] or [Off]
Select this submenu to set the clock display On or Off.

- [24/12 Hr]
Select this submenu to set the 12h/24h time display mode.

To return to the top page of the setting mode, select “BACK”.

The time display may be different from the one on the audio display.

Units:

The units can be set for the following items on this menu.

- Temperature
- Distance/Fuel
To return to the top page of the setting mode, select “BACK”.

Maintenance:

The maintenance intervals of the following items can be set or reset for the reminders.

- SERVICE
Select this submenu to set or reset the distance for service due.

- TIRE
Select this submenu to set or reset the distance for replacing tires.

- OTHER
Select this submenu and set or reset the distance for items other than service or tires.

To return to the top page of the setting mode, select “BACK”.

Alarms:

Alarms menu can be set to notify the following items.

- Driver alert
Select this submenu to set the driver alert period.

- Outside temp
Select this submenu to turn ON or OFF the low outside temperature warning features.

For a description of the low outside temperature warning features when Outside Temp is set to ON, see “Outside air temperature” earlier in this section.

With Outside Temp set to OFF,
— The outside temperature display remains on steady at all outside temperatures and does not flash.

— The low outside temperature warning indicator does not appear.

To return to the top page of the setting mode, select “BACK”.

Language:

Select the submenu to set the desired language of the display.

Factory:

Select the submenu to reset the factory settings of the display.

NOTE:

When resetting Factory, all previous settings made are changed to default.

To return to the top page of the setting mode, select “BACK”.
