Jeep Liberty: Trailer Towing Weights (Maximum Trailer Weight Ratings) - Trailer Towing - Starting And Operating - Jeep Liberty Owner's ManualJeep Liberty: Trailer Towing Weights (Maximum Trailer Weight Ratings)

Jeep Liberty / Jeep Liberty Owner's Manual / Starting And Operating / Trailer Towing / Trailer Towing Weights (Maximum Trailer Weight Ratings)

The following chart provides the maximum trailer weight ratings towable for your given drivetrain.

When Towing Trailers With Gross Trailer Weight (GTW) Between 3,500 Lbs (1

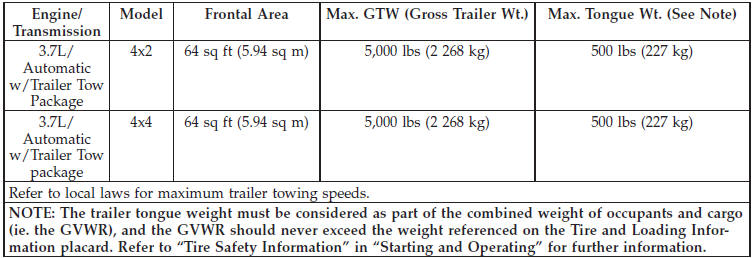

When Towing Trailers With Gross Trailer Weight (GTW) Between 3,500 Lbs (1 588 kg) And 5,000 Lbs (2 268 kg)

The following chart provides maximum trailer weight ratings towable for the following engine/transmission combinations, ONLY if using a weight distributing hitch.

Trailer And Tongue Weight

    Trailer Hitch Classification
    Your vehicle is capable of towing trailers up to 2,000 lbs (907 kg) without added equipment or alterations to the standard equipment. Your vehicle may be factory equipped for safe towing of trai ...

    Trailer And Tongue Weight
    Always load a trailer with 60% to 65% of the weight in the front of the trailer. This places 10% to 15% of the Gross Trailer Weight (GTW) on the tow hitch of your vehicle. Loads balanced over th ...
