Jeep Liberty: To Lower The Rear Seat
1. Locate the release strap on the lower outboard side of each rear seatback.
2. Pull the release strap (toward the front of the vehicle).

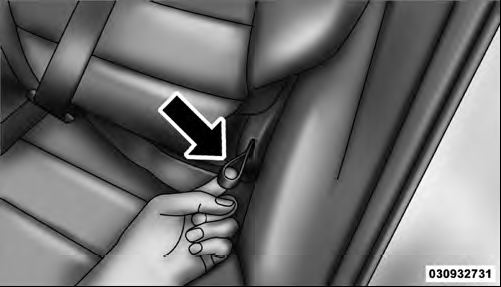

Rear Seat Release Strap
3. Fold the rear seat completely forward.
4. If desired, push down on the seatback to lock it in the folded position.
60/40 Split Folding Rear Seat With Fold-Flat Feature
To provide additional storage area, each rear seat can be
folded flat. This allows for extended cargo space and still
maintains some rear seating room.
NOTE: Prior to folding the rear seat, it ma ...
To Raise The Rear Seat
NOTE: If interference from the cargo area prevents the
seatback from fully locking, you will have difficulty
returning the seat to its proper position.
1. If locked in the folded position, pull t ...
