Mercedes-Benz GLK-Class: Switching on/off
The three red indicator lamps in the button indicate the heating level you have selected.
If the battery voltage is too low, the seat heating may switch off.
Driver's and front-passenger seat
The system automatically switches down from level 3 to level 2 after approximately eight minutes.
The system automatically switches down from level 2 to level 1 after approximately ten minutes.
The system automatically switches off approximately 20 minutes after it is set to level 1.
- Make sure that the SmartKey is in position 2 in the ignition lock.

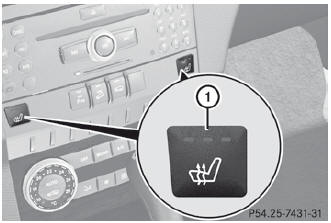

- To switch on: press button 1 repeatedly until the desired heating level is set.
- To switch off: press button 1 repeatedly until all the indicator lamps go out.
Problems with the seat heating
The seat heating has switched off prematurely or cannot be switched on. The vehicle's electrical system voltage is too low because too many electrical consumers are switched on. X Switch off ...See also:
