Subaru Forester: Non-turbo models

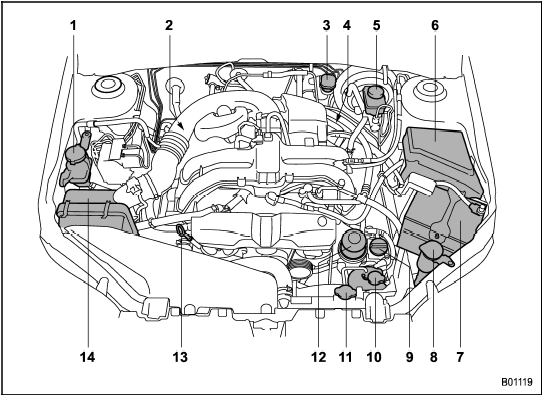

Non-turbo models
1) Power steering fluid reservoir
2) Manual transmission oil level gauge (MT) or Differential gear oil level gauge
(AT)
3) Clutch fluid reservoir
4) Automatic transmission fluid level gauge
5) Brake fluid reservoir
6) Fuse box
7) Battery
8) Windshield washer tank
9) Engine oil filler cap
10) Engine coolant reservoir
11) Radiator cap
12) Engine oil filter
13) Engine oil level gauge
14) Air cleaner case
Turbo models
Turbo models
1) Power steering fluid reservoir
2) Differential gear oil level gauge (AT)
3) Clutch fluid reservoir
4) Automatic transmission fluid level gauge
5) Brake fluid reservoir
6) ...
