Ford Escape: Identifying components in the engine compartment

Ford Escape / Ford Escape Owner's Manual / Maintenance and Specifications / Identifying components in the engine compartment

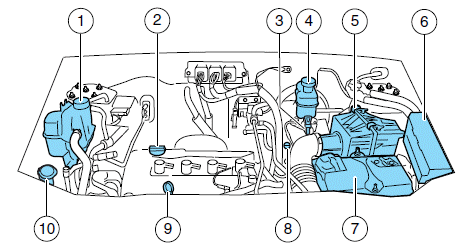

2.5L I4 engine

1. Engine coolant reservoir

1. Engine coolant reservoir
2. Engine oil filler cap
3. Automatic transmission dipstick (if equipped)
4. Brake/Clutch fluid reservoir
5. Air filter assembly
6. Power distribution box
7. Battery
8. Engine coolant bleed valve
9. Engine oil dipstick
10. Windshield washer fluid reservoir

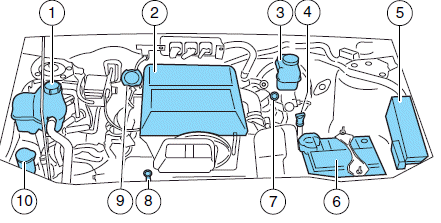

3.0L V6 eng

1. Engine coolant reservoir

1. Engine coolant reservoir
2. Air filter assembly
3. Brake fluid reservoir
4. Automatic transmission fluid dipstick
5. Power distribution box
6. Battery
7. Coolant bleed valve
8. Engine oil dipstick
9. Engine oil filler cap
10. Windshield washer fluid reservoir
