Toyota RAV4: Follow the correction procedures
After taking the specified steps to correct the suspected problem, check that the warning light turns off.

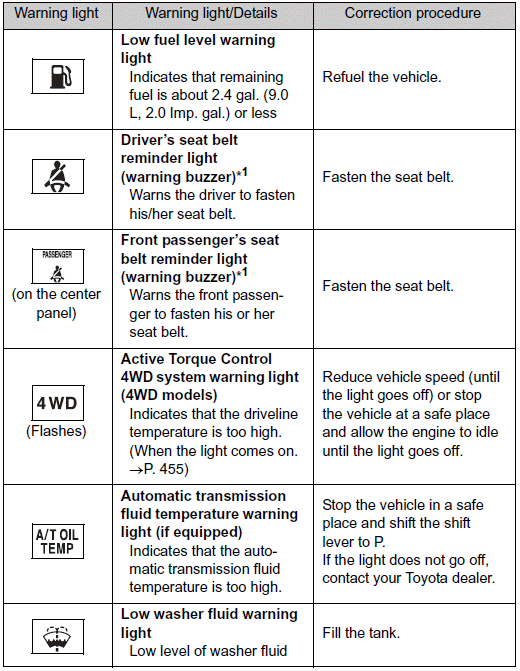

*1:Driver's and front passenger’s seat belt warning buzzers
The driver’s and front passenger’s seat belt warning buzzers sound to alert
the driver and front passenger that his or her seat belt is not fastened. The
buzzer sounds intermittently for 10 seconds after the vehicle has reached a
speed of 12 mph (20 km/h). Then, if the seat belt is still unfastened, the
buzzer will sound at a different tone for 20 more seconds.

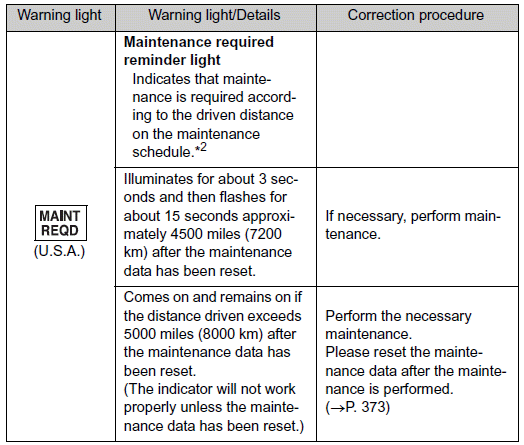

*2:Refer to the separate “Scheduled Maintenance Guide” or “Owner's Manual
Supplement” for the maintenance interval applicable to your vehicle.
Have the vehicle inspected immediately
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
...
Follow the correction procedures. (vehicles with smart key system)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
*: If the engine does not start when the electronic key is inside the
vehicle, the
e ...
