Exterior rear

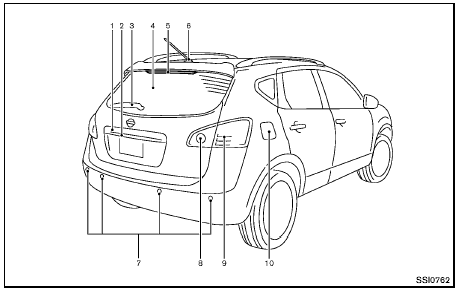

Exterior rear

1. Lift gate
— Intelligent Key system*
2. Rear view camera*
3. Rear window wiper and washer
— Switch operation
— Window washer fluid
4. Rear window defroster
5. High-mounted stop light
— Bulb replacement
6. Antenna
— Satellite radio antenna*
7. Sonar sensors*
— Sonar system*
8. Back-up light
— Bulb replacement
9. Rear combination light
— Bulb replacement
10. Fuel-filler door
— Operation
— Fuel recommendation

*: if so equipped
