Subaru Forester: Examples of the types of accidents in which it is possible that the SRS side
airbag and the SRS curtain airbag will deploy.

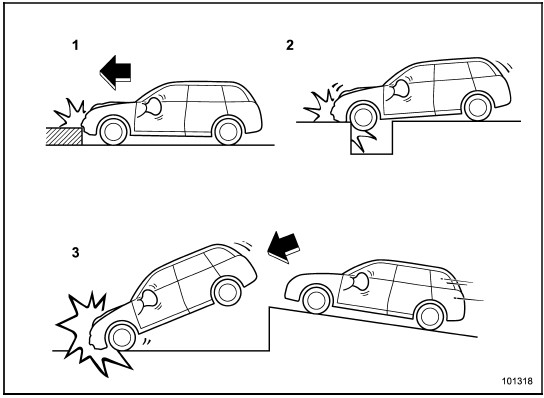

1) Hitting a curb, edge of pavement or hard
surface
2) Falling into or jumping over a deep hole
3) Landing hard or vehicle falling
It is possible that the SRS side and curtain airbags will deploy if a serious impact occurs to the underside of your vehicle.
Some examples are shown in the illustration.
Examples of the types of accidents in which the SRS curtain airbag will most
likely deploy.
1) A severe side impact near the front seat
or the rear seat activates the SRS curtain
airbag.
2) The vehicle rolls onto its side or the roof.
3) If the angle of vehicle tip-up is marginal
o ...
Examples of the types of accidents in which the SRS side airbag is unlikely
to deploy.
1) The vehicle is involved in an oblique
side-on impact.
2) The vehicle is involved in a side-on
impact in an area outside the vicinity of
the passenger compartment.
3) The vehicle strikes a ...
