Volvo XC60: Child safety locks
Child safety locks – rear doors

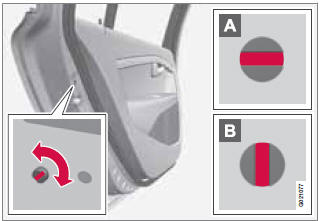

The controls are located on the rear door jambs. Use the remote control's key blade or a screwdriver to adjust these controls.
A The rear doors can only be opened from the outside when the slot is in the horizontal position.
B The rear doors can be opened from the inside when the slot is in the vertical position.
Stowing the two-stage integrated booster cushion
The booster cushion can be folded down completely (stowed) from either the stage 1 or stage 2 positions. NOTE The booster cushion cannot be moved from the stage 2 (upper) position to the sta ...Locks and alarm
