Hyundai Tucson: Heating and cooling control

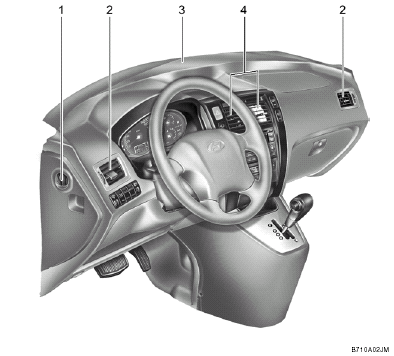

1. Side Defroster Nozzle
2. Side Ventilators
3. Windshield Defroster Nozzles
4. Center Ventilators
CENTER VENTILATOR
The center ventilators are located in the middle
of the dashboard. To change the direction of the
air flow, move the knob in the center of the vent
up-and-down and side-to-side. The vents are
opened when the vent knob is moved to "
"
position. The vents are closed when the vent
knob is moved to "
". Keep these vents
clear
of any obstructions.
SIDE VENTILATOR
The side ventilators are located on each side of
the dash board. To change the direction of the
air flow, move the knob in the center of the vent
up-and-down and side-to-side. The vents are
closed when the vent knob is moved to ""
position. The vents are opened when the vent
knob is moved to "". Keep these vents
clear
of any obstructions.
Cruise control
(If installed)
The cruise control system provides automatic
speed control for your comfort when driving on
straight, open freeways, toll roads, or other
noncongested highways. This system is ...
Heating and ventilation
There are three controls and two switches for
the heating and cooling system. They are:
1. Air flow control.
2. Fan speed control.
3. Temperature control.
4. Air intake control switch.
5 ...
