GMC Terrain: Engine Compartment Fuse Block - Fuses - Electrical System - Vehicle Care - GMC Terrain Owner's ManualGMC Terrain: Engine Compartment Fuse Block

To remove the fuse block cover, squeeze the clips on the cover and lift it straight

To remove the fuse block cover, squeeze the clips on the cover and lift it straight up. See Engine Compartment Overview on page 10‑6.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

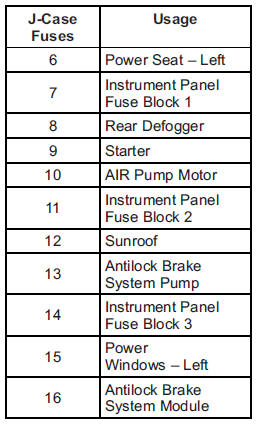

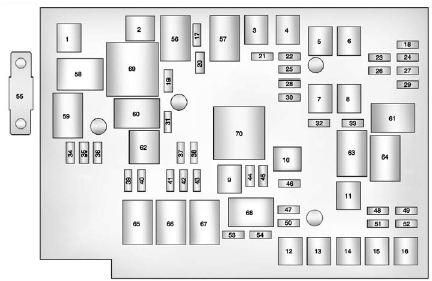

Engine Compartment Fuse Block

Engine Compartment Fuse Block

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Instrument Panel Fuse Block

    Fuses
    The wiring circuits in the vehicle are protected from short circuits by fuses. This greatly reduces the chance of damage caused by electrical problems. Look at the silver-colored band inside the fu ...

    Instrument Panel Fuse Block
    The instrument panel fuse block is located on the passenger side panel of the center console. To access the fuses, open the fuse panel door from the passenger side by pulling it out. To reinsta ...
